Doggler Frameset
$1,299.00

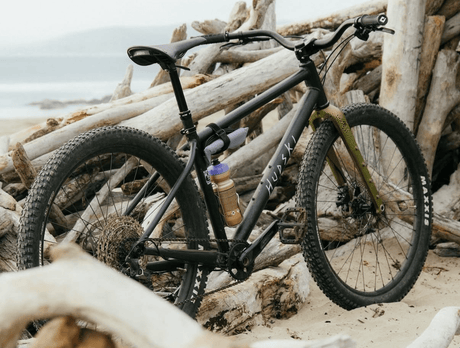

Doggler: reissue
Back by popular demand, the Doggler returns, now featuring a carbon crackle painted fork (12x100 spacing). The Doggler is a perfect platform for building a custom ripper suitable for all duties.
Framesets include:
- Doggler aluminum frame
- Doggler carbon fork with crackle paint (12x100 spacing)
- Wolf Tooth front axle (12x100)
- Wolf Tooth Components rear thru axle (12x142)
- Wolf Tooth Components seat post collar (34.9mm)
- Hudski derailleur hanger & assorted small hardware
- Headset not included (required headset: ZS44 / ZS44)
Frame set
BUILD IT FOR HOW YOU RIDE
Work with your local shop to pick the perfect combination of parts. Build up your Doggler frame set for bike packing, flowing single tracks, or the daily commute. It wont let you down.
Technical details
Frame, fork, wheels, and the geometry behind the fit.
Geometry S / M / L / XL
Adjustable ride feel
435 / 450 mm
Chainstay
44 / 54 mm
Fork offset
Short = poppy / Long = planted
54 = quicker / 44 = calmer
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Rider height | 5'1-5'5 | 5'5-5'9.5 | 5'9.5-6'1 | 6'1-6'5 |
| Reach | 420 | 440 | 465 | 490 |
| Stack | 555 | 583 | 606 | 633 |
| Head Tube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| BB Drop | 81 | 81 | 76 | 76 |
| Chainstay Length | 450 | 450 | 450 | 450 |
| STA | 74 | 74 | 74 | 74 |
| Wheelbase | 1105 | 1137 | 1175 | 1210 |
| Front Center | 668 | 699 | 735 | 771 |
| Head Tube Length | 115 | 145 | 175 | 205 |
| Top Tube Length | 561 | 587 | 617 | 649 |
| Seat Tube Length | 390 | 430 | 470 | 510 |
| Rider Stand Over (700x50 tires) | 685 | 720 | 760 | 795 |
| Fork Offset | 44 | 44 | 44 | 44 |
Sizing
Start with height.
Fine-tune with how you ride.
| Size | Rider height | Rider height in centimeters | 29 x 2.4 standover | Standover |
|---|---|---|---|---|
| S | 5'1"–5'5" | 152–165 cm | 29 x 2.4 standover | 740 mm |
| M | 5'5"–5'9" | 165–178 cm | 29 x 2.4 standover | 760 mm |
| L | 5'9"–6'1" | 178–185 cm | 29 x 2.4 standover | 795 mm |
| XL | 6'1"–6'5" | 185–198 cm | 29 x 2.4 standover | 825 mm |
